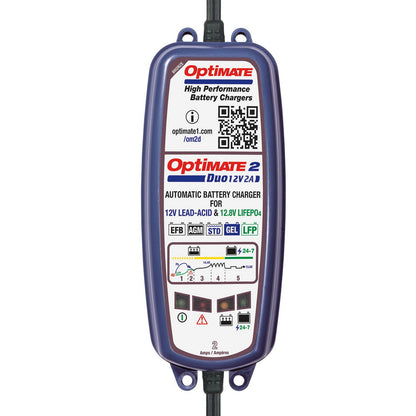

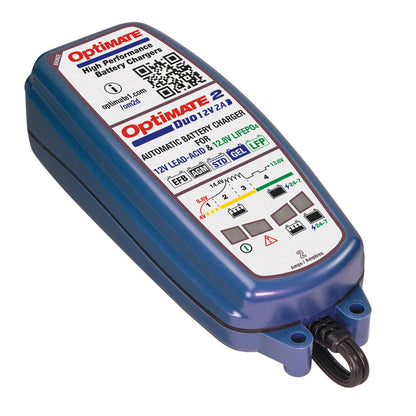

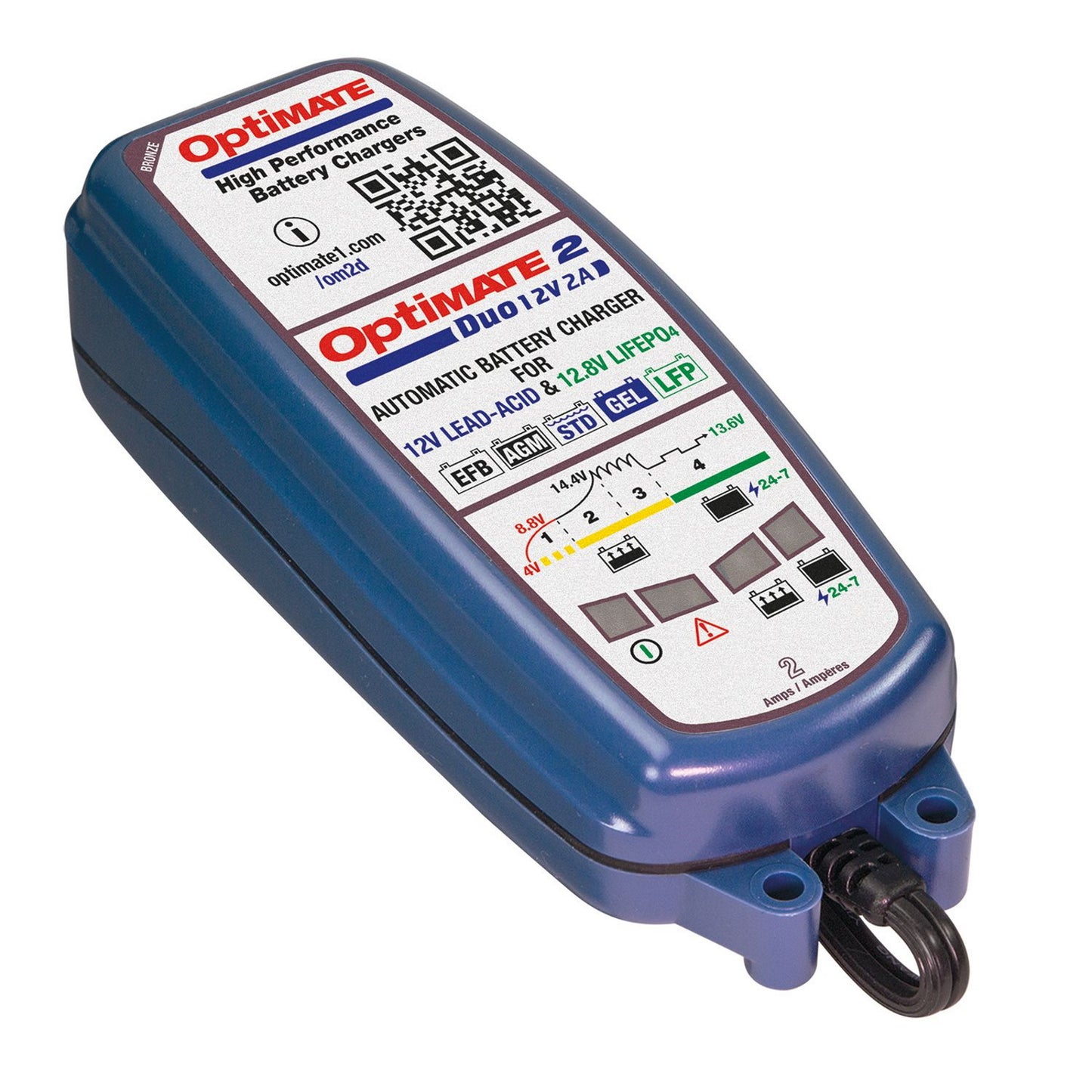

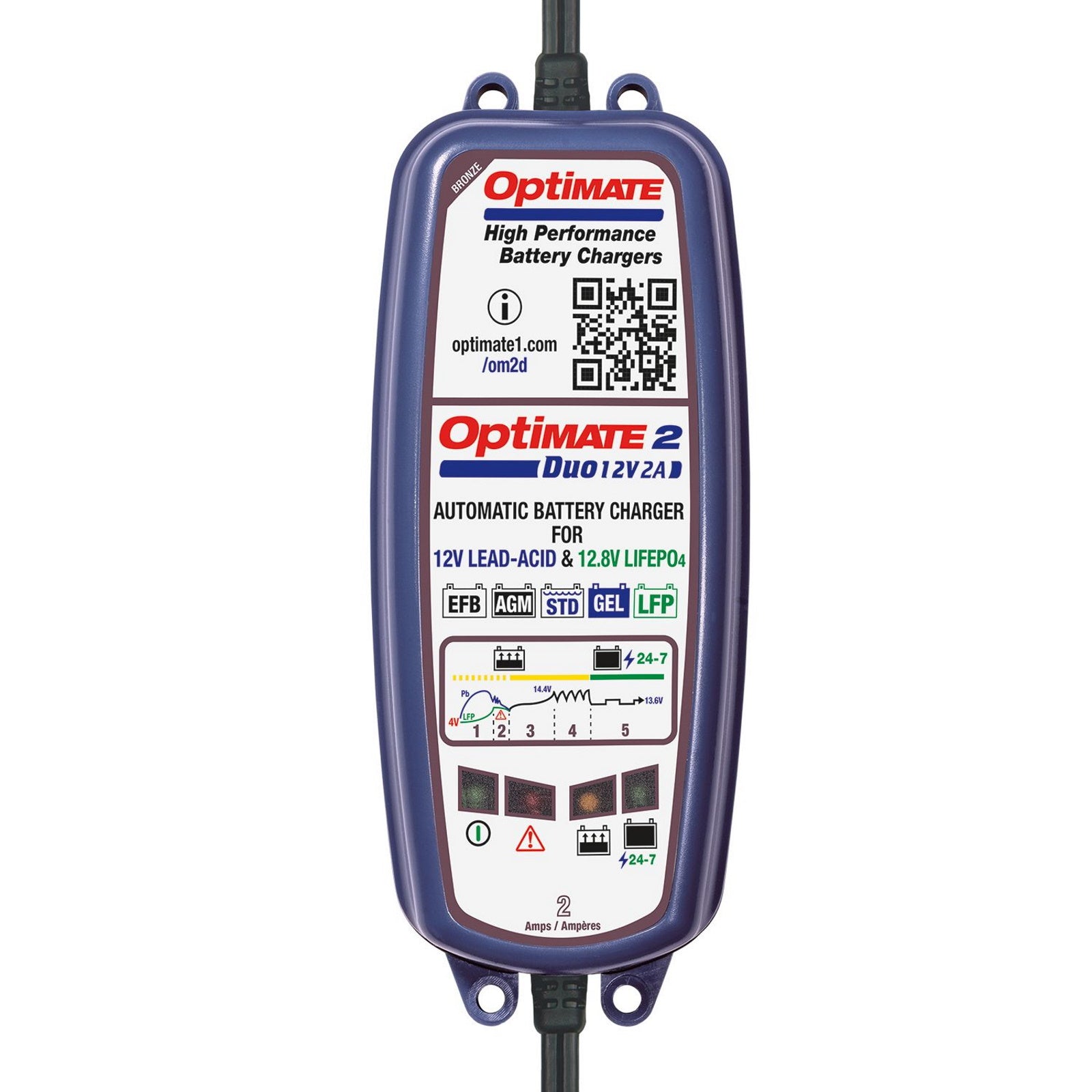

The OptiMate 2 Duo smart charger-maintainer is the cost-effective
solution for long term maintenance of lead acid and lithium batteries in
any vehicle / craft that is stored in or outdoors.
Ideal for all types of 12V lead acid and 12.8V/13.2V lithium LFP
batteries, 2 Amps of charge current is delivered making it ideal for
long term maintenance of larger batteries as well.
Technical Specifications
-
Recommended for: AGM , STD, GEL batteries from 6 to 96Ah and Lithium
(LiFePO4) 12.8/13.2V batteries from 2 - 24Ah.
-
Programme control: Fully automatic.
-
Input Voltage: 100-240V 50-60Hz global input.
-
Typical annual energy cost: Less than £1.00 per year (continuous
maintenance)
-
Reverse drain current: Less than 1mA Output current (bulk charge): 2A
-
Automatic desulphation: Yes.
-
Charge time limit: Safe to leave connected for months.
-
Maintain / test cycles: 30 min/30 min (alternating hourly)
-
Size: 167 x 65 x 46mm
-
Weight: 800g
-
Enclosure classification: IP54
-
Mounting: Easy direct wall mounting.
-

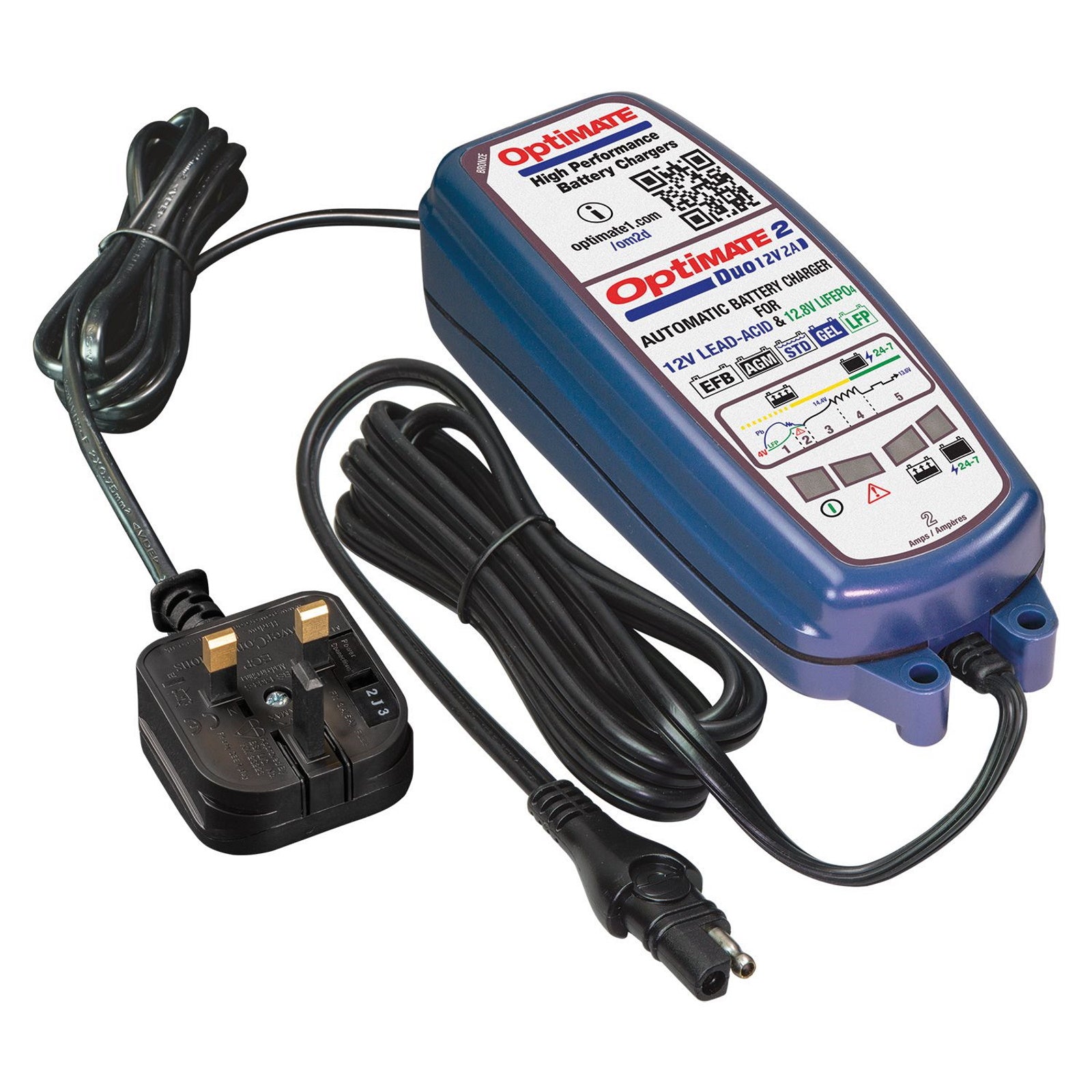

Input cable length: 2m Output cable length: 2m
-
Included Accessories: O1 Weatherproof Eyelet Lead; O4 Clamp Lead for
bench charging.
-
Operation temperature range: -20°C / +40°C
-
Warranty: 3 years

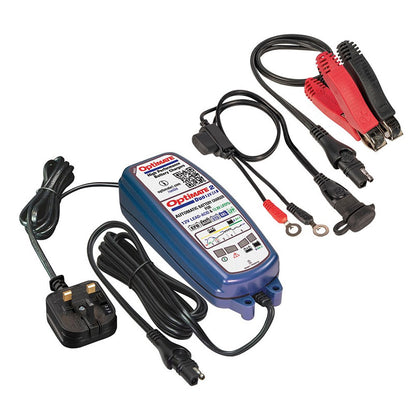

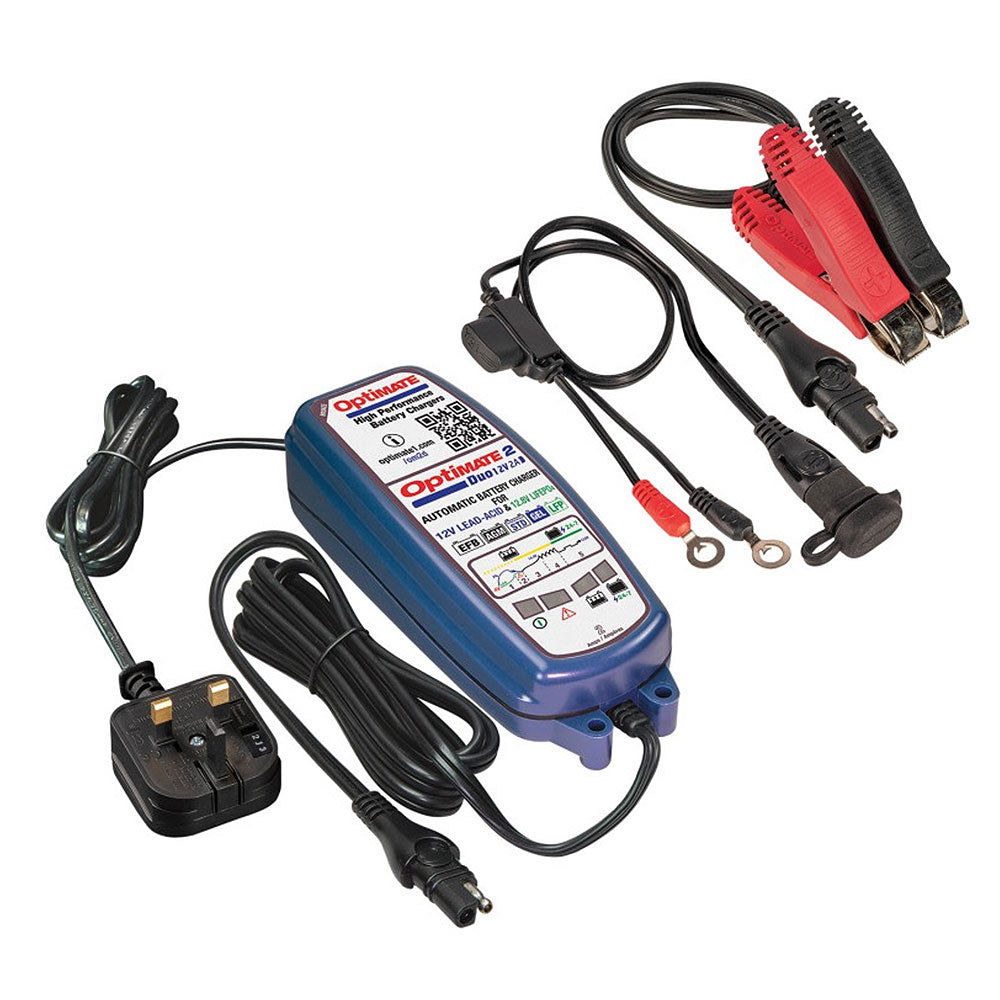

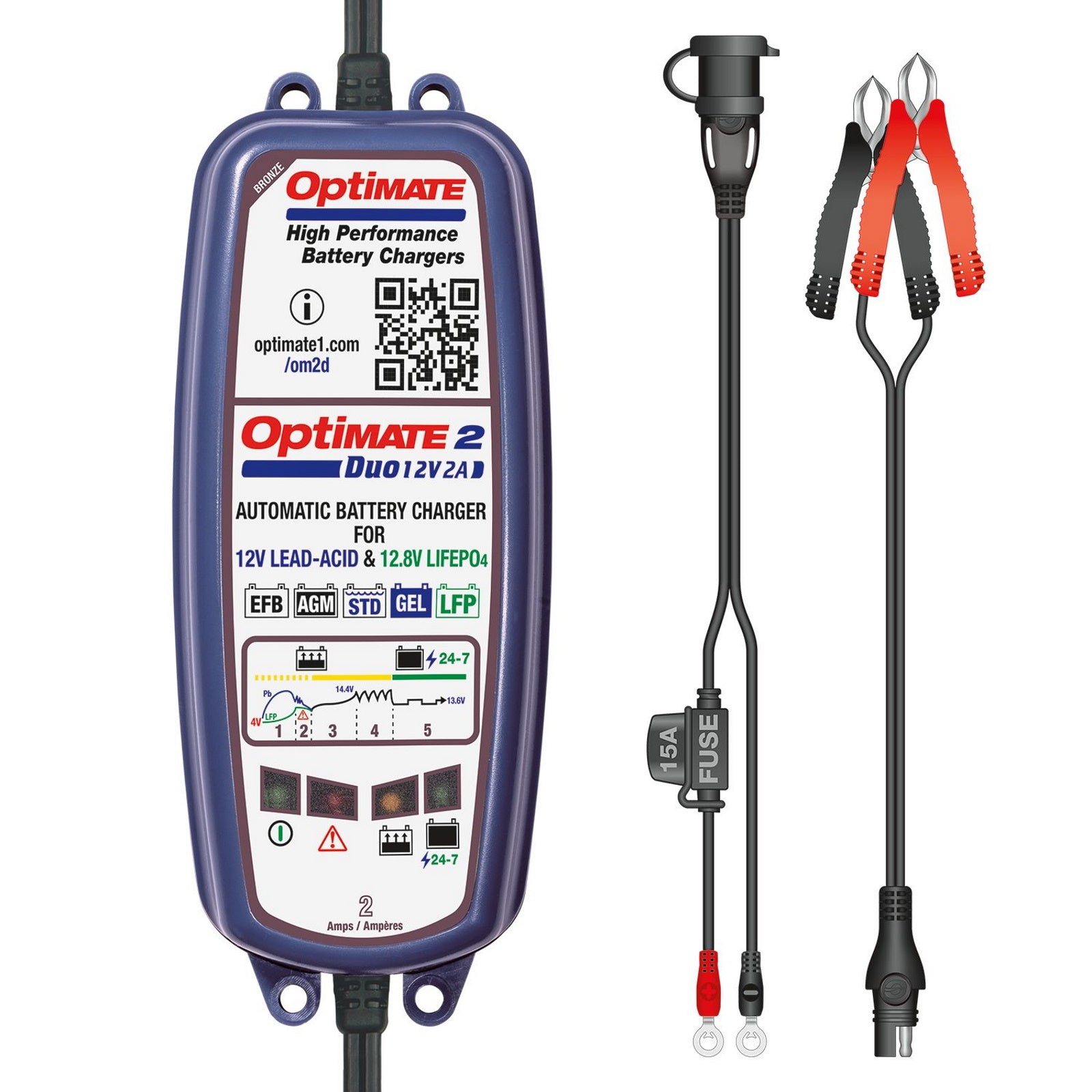

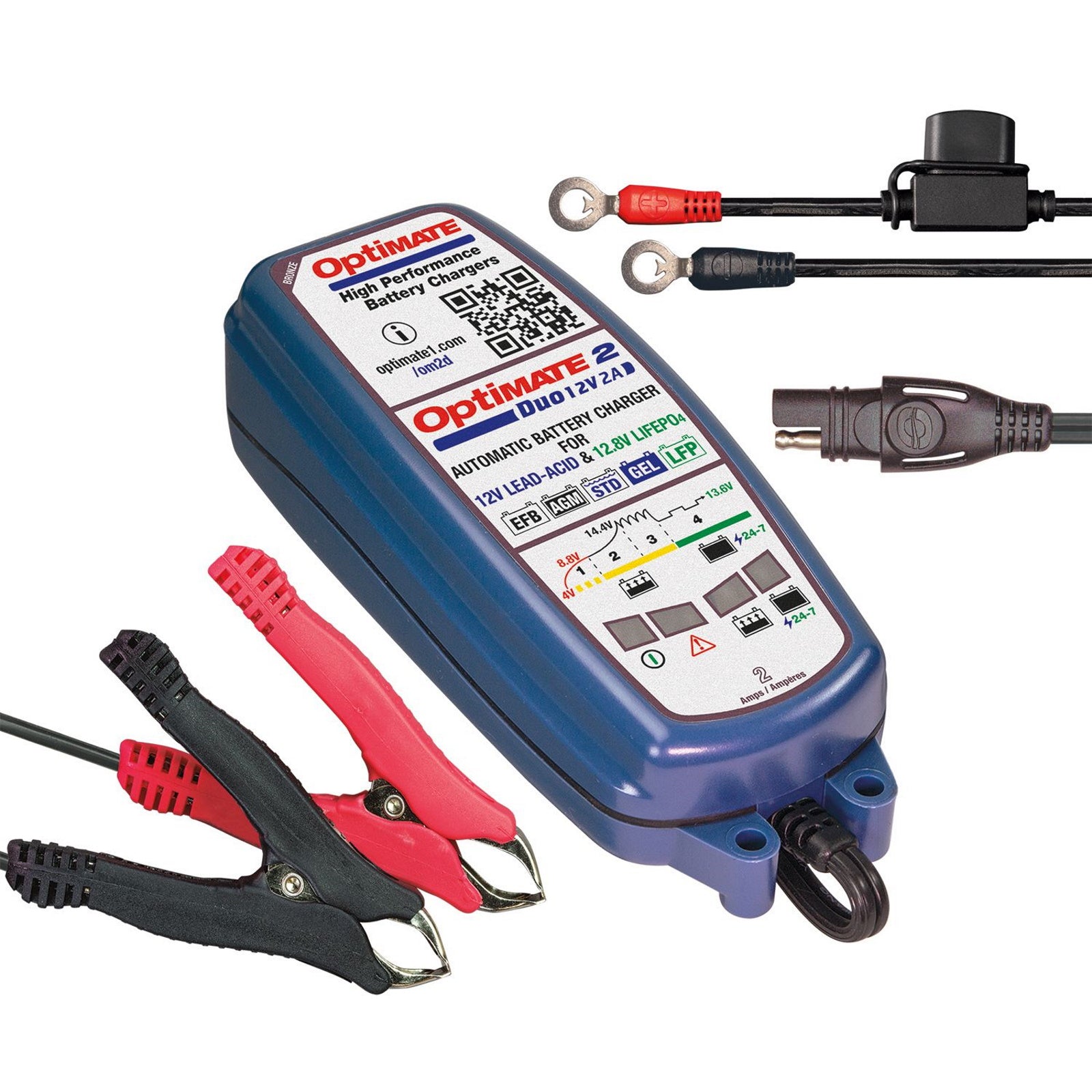

Delivered with two interchangeable SAE connection sets, one with clamps
for bench charging, the other with in-line protection fuse and eyelet
terminals for permanent attachment to in-vehicle battery to allow easy
reconnection of charger when necessary.
