OptiMate 3 x 2 is totally automatic and fully protected against user
errors. There are no switches. Short-circuiting the charger output
resets the programme, without sparks or blown fuses. Affordable,
compact, intelligent and forgiving of errors, OptiMate 3 is the perfect
tool for regular or long-term maintenance of batteries not in daily use.
-
Recommended for: AGM / MF, STD, GEL and spiral cell batteries from 3Ah
to 50Ah
-
Programme control: Microprocessor, 7 stages, fully automatic
-
Input Voltage: 100-240V50-60 Hz
-
Input current max: 0.46A @ 100V; 0.30A @ 240V
-
Typical annual energy cost: Less than £1.00 per year (continuous
maintenance)
-
Reverse drain current: Less than 1mA per channel
-
Output current (bulk charge): 2 x 0.8A
-
Automatic desulphation: Yes
-
Charge time limit: Safe to leave connected for months
-
Maintain / test cycles: 30 min/30 min (alternating hourly)
-
Charge retention test: 2 possible results - ‘good’ & ‘bad’
-
Size: 167 x 130 x 46mm
-
Weight: 1300g
-
Enclosure classification: IP54
-
Mounting: Easy direct wall mounting
-
Input cable length: 2m
-
Output cable length: 2m
-
Included Accessories: 2 x O1 Weatherproof Eyelet Lead; 2 x O4 Clamp
Lead for bench charging
-
Operation temperature range: -20°C / +40°C
-
Warranty: 3 years

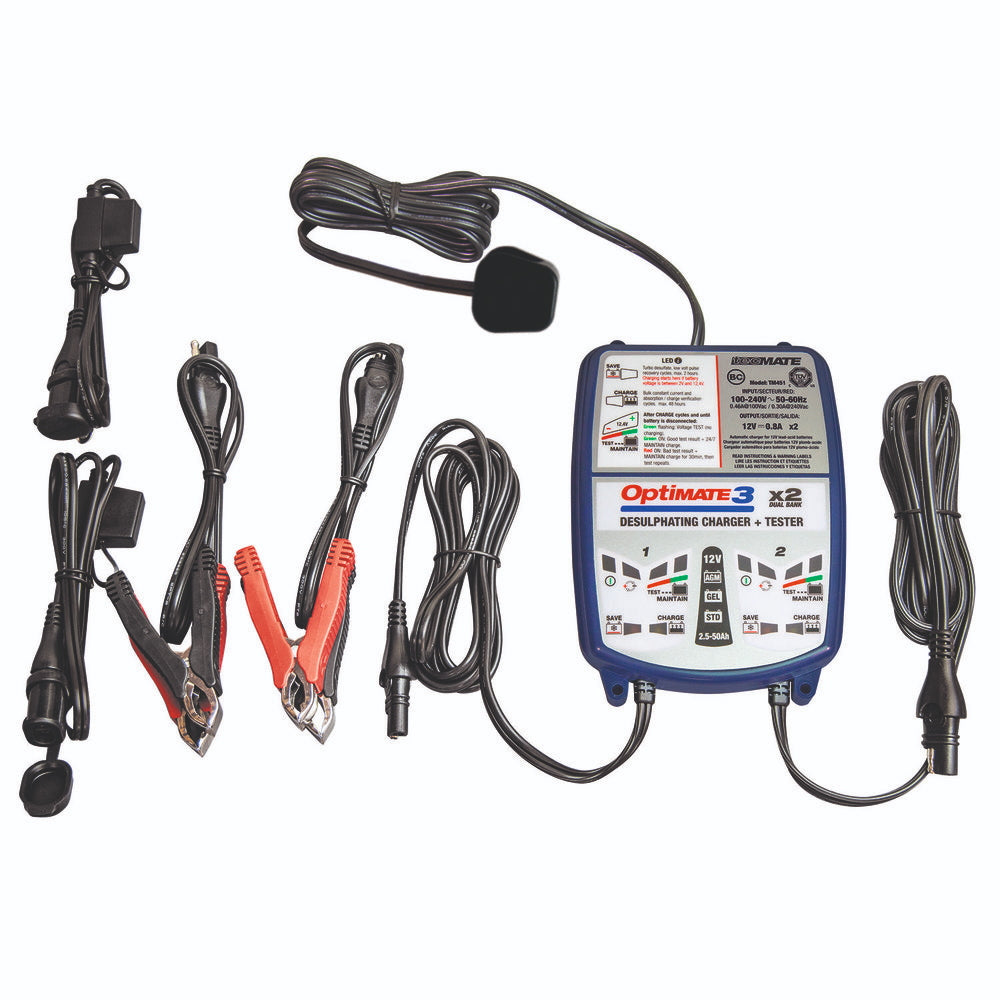

Delivered with four interchangeable connection sets, two with clamps for
bench charging, and two with in-line protection fuse and eyelet
terminals for permanent attachment to in-vehicle battery to allow easy
reconnection of charger when necessary.
Optional accessories include additional fused permanent connection leads
(O1); cigarette lighter plug lead (O2) to charge via the cigarette
lighter or DIN socket (as found on some BMW, Honda& Triumph touring
motorcycles); 1.8m and 4.6m extension leads; weatherproof sockets to
provide a convenient 12V supply for sat-nav, MP3 player, mobile phone
charger PDA etc. and much more.
Certifications: TUV/GS conformity. 3-year warranty.
