OptiMate SOLAR + 10W Solar Panel
OptiMate Solar - the worlds most efficient Solar Pulse Charger, Tester &
Maintainer.
Charger by day, Monitor by night.
The new OptiMate Solar range features a smart charger-monitor which
provides battery status information when charging and when the battery
is at rest overnight.

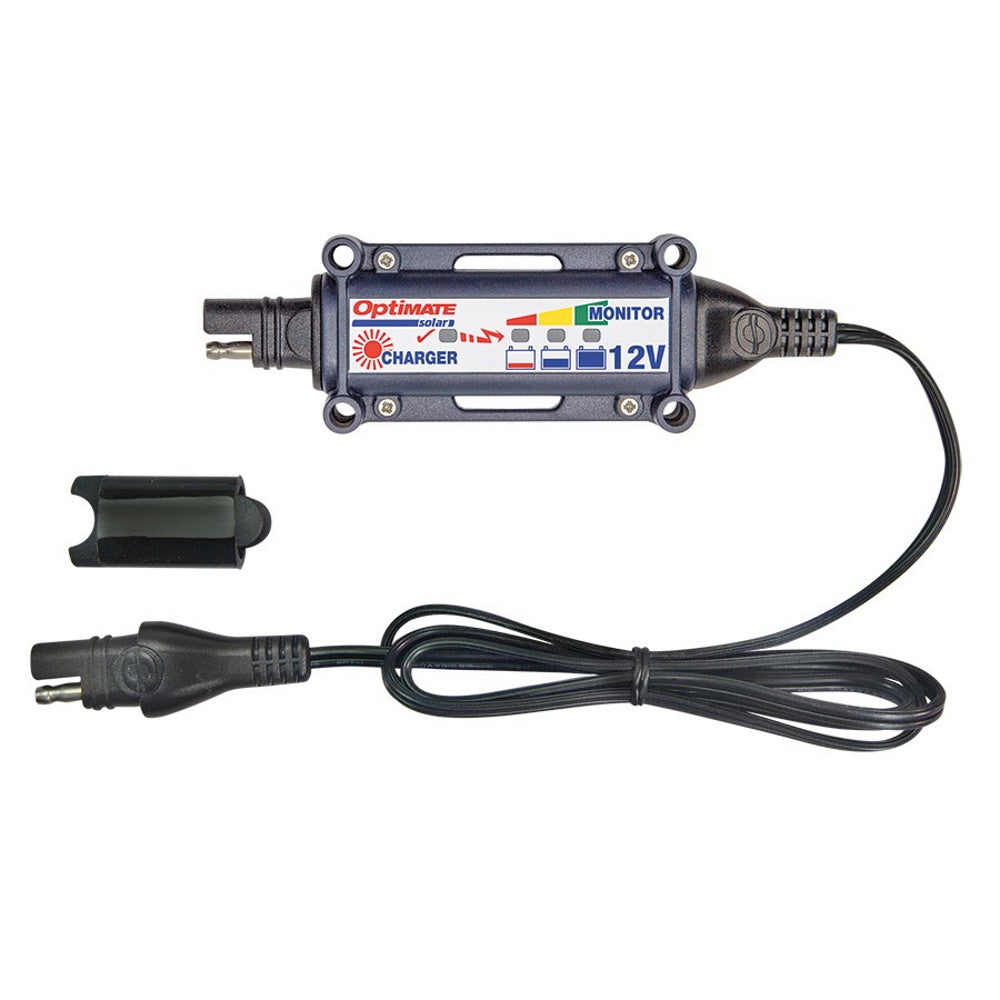

The OptiMate Solar TM-522 2 Amp smart charger-controller has a 4-LED
panel for comprehensive information on charge progress and battery
status.
OptiMate Solar charge kits are fully automatic.
Mount the panel in a suitable location to receive maximum sunlight, hook
up the charger-monitor to the battery and walk away.
No more battery problems.
When the panel receives sun, the SOLAR CHARGE LED blinks confirming
solar power is being delivered and one of the three battery status LEDs
(SAVE, CHARGE, MAINTAIN) indicates charge progress.
OptiMate Solar converts low solar energy to a high pulse charge which
improves solar charge efficiency.
When night falls or if the smart charger-monitor senses no solar power
is being delivered it changes into a battery monitor with one of the
three charge status lights now indicating battery status every three
seconds.
The 10W TM-522-1 kit (12V 0.8A max.) is ideal for all powersports
vehicles.

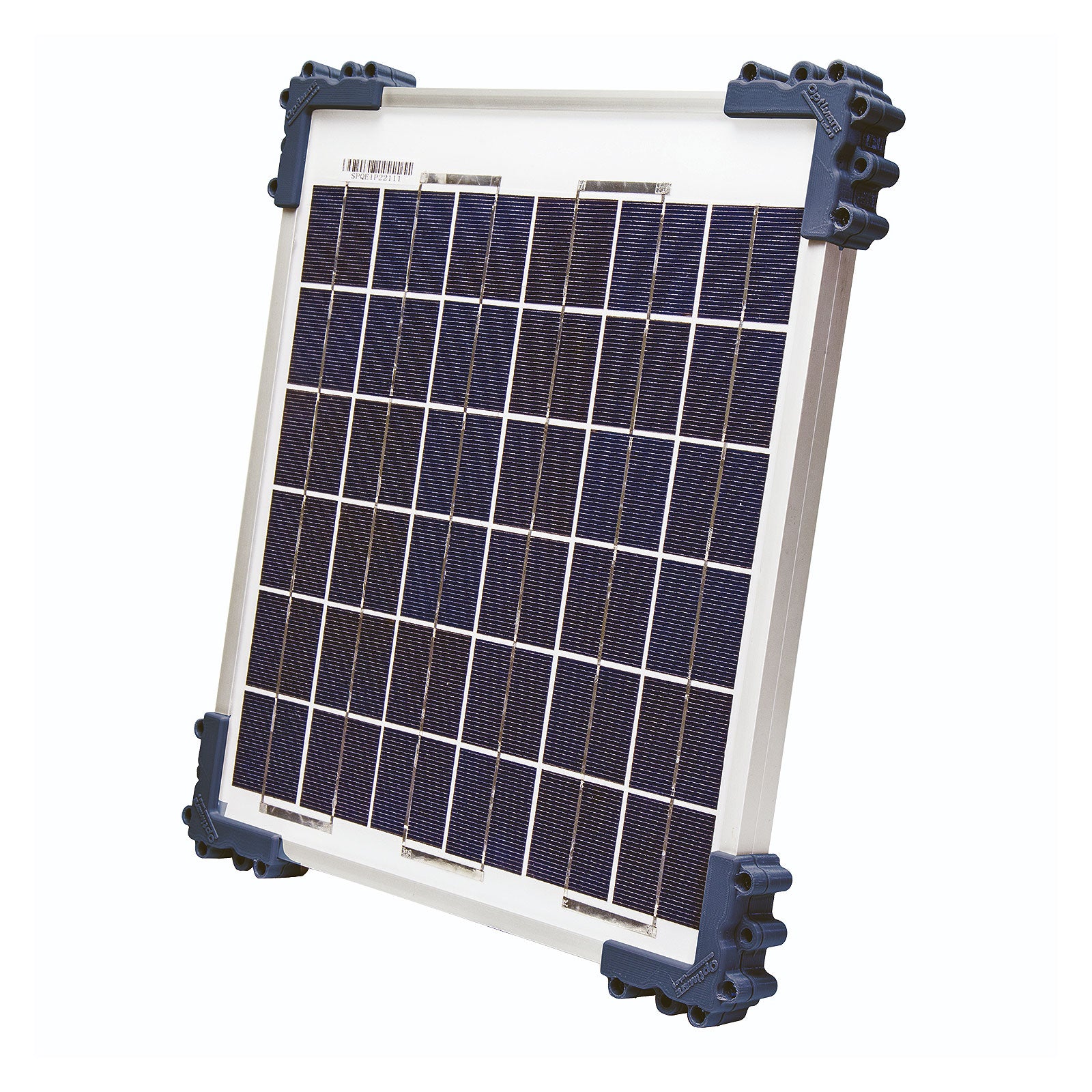

The weatherproof solar panel includes corner mounts for easy wall or
roof mounting.

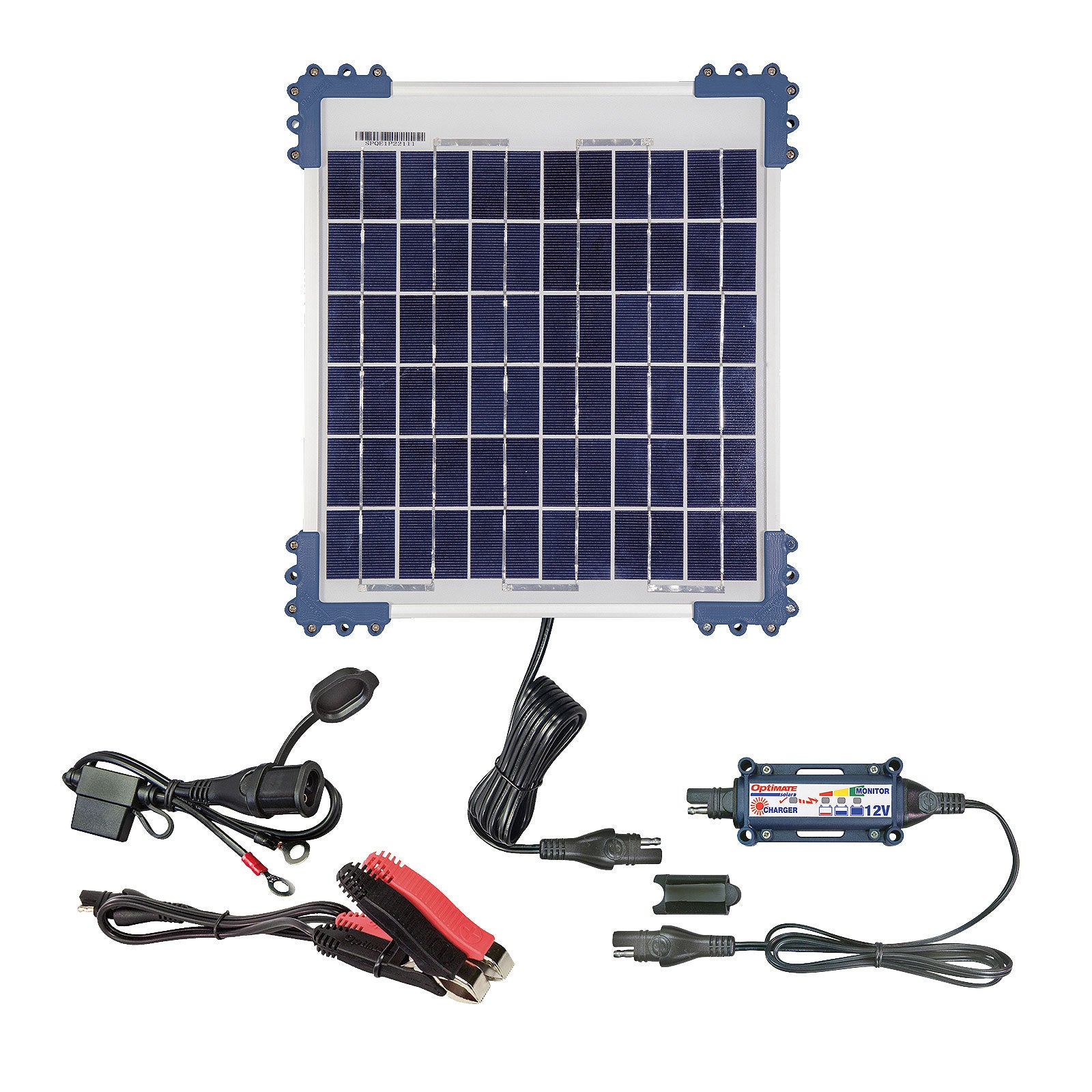

Each kit includes a high intensity poly crystalline panel with a 2m
power cable, an OptiMate O-1 weatherproof battery lead, an OptiMate O-4
battery clamp lead and the outdoor rated OptiMate smart
charger-controller (TM-522) with a 1m charge cable.
Technical Specifications
-
Ideal for: 12V lead-acid batteries 2 to 240Ah, AGM (MF), Standard, GEL
and AGM spiral cell.
-
Program control: 4 stages, fully automatic.
-
Max output current pulse (bulk charge): 2A Charge time limit: Safe to
leave connected for seasonal maintenance.
-
Maintain / test cycles: Keeps battery at 100% charged when not in use.
-
Enclosure: fully sealed (IP54) Included Solar Panel: 10W Solar Panel.
-
Solar Panel Size: 320 x 300 x 30 mm Cable length: 2m from panel to
charger; 1m from charger to output connector.
-
Included accessories: 01 weatherproof permanent lead; 04 battery clamp
lead.
-
Operation temperature range: From –20ºC -> 40°C Ratings / approvals:
CE, NRTL (UL & CSA), SAA (AU & NZ)
-
Warranty: 3 Years.
