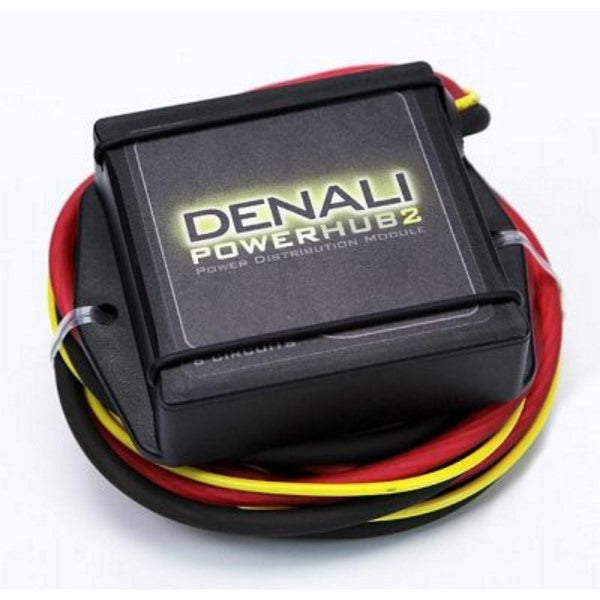

Denali PowerHub2 Fuse Block w/wiring harness (DENELC.00.30000)
The PowerHub2 Power Distribution Module, manufactured by Denali is made
in the USA and allows you to safely connect up to 6 electronic devices
to your motorcycle in a clean, workmanlike manner. It's CANbus
compatible and includes six 15-amp rated and fused outputs, six ground
posts, and a plug-and-play wiring harness for direct battery hookup.
Each of the six outputs can be individually set as "always on" or
"switched" on/off with the ignition of the motorcycle. Instead of
attaching multiple ring terminals to your battery, use a PowerHub2!
Denali designed the CANbus-safe PowerHub2 to allow simple and easy
installation of electrical components. Each unit has six individually
fused outputs. These are not your ordinary outputs.

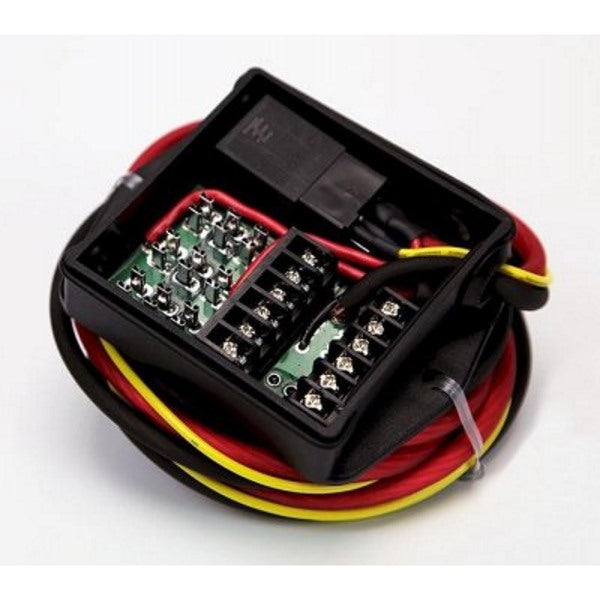

Simply plug the fuse in to the left or the right on the circuit board to
make the accessory live all of the time or switched on/off with the
bike's ignition. The entire unit is rated for 30 Amps (360 watts). Each
of the six circuits can handle up to 15A (180W) each - without exceeding
a total sum of 30 Amps simultaneously. Features: Replaceable 30 amp
Tyco/Bosch micro relay Water-resistant Compact Durable Choice between
switched and constant power Specs: Dimensions: L 3" x W 4" x H 1" 6
circuits can handle up to 15A (180W) each CANbus-compatible 60 inch long
10 gauge wiring harness with Posi-lock connector What's in the Box:
PowerHub2 fuse block 2 ring terminals Wiring harness for connecting
PowerHub2 to battery (includes switched "trigger" wire with Posi-tap
connector) Self-adhesive hook and loop pad for providing a quick-release
attachment method for connecting the PowerHub2 to a flat surface.
