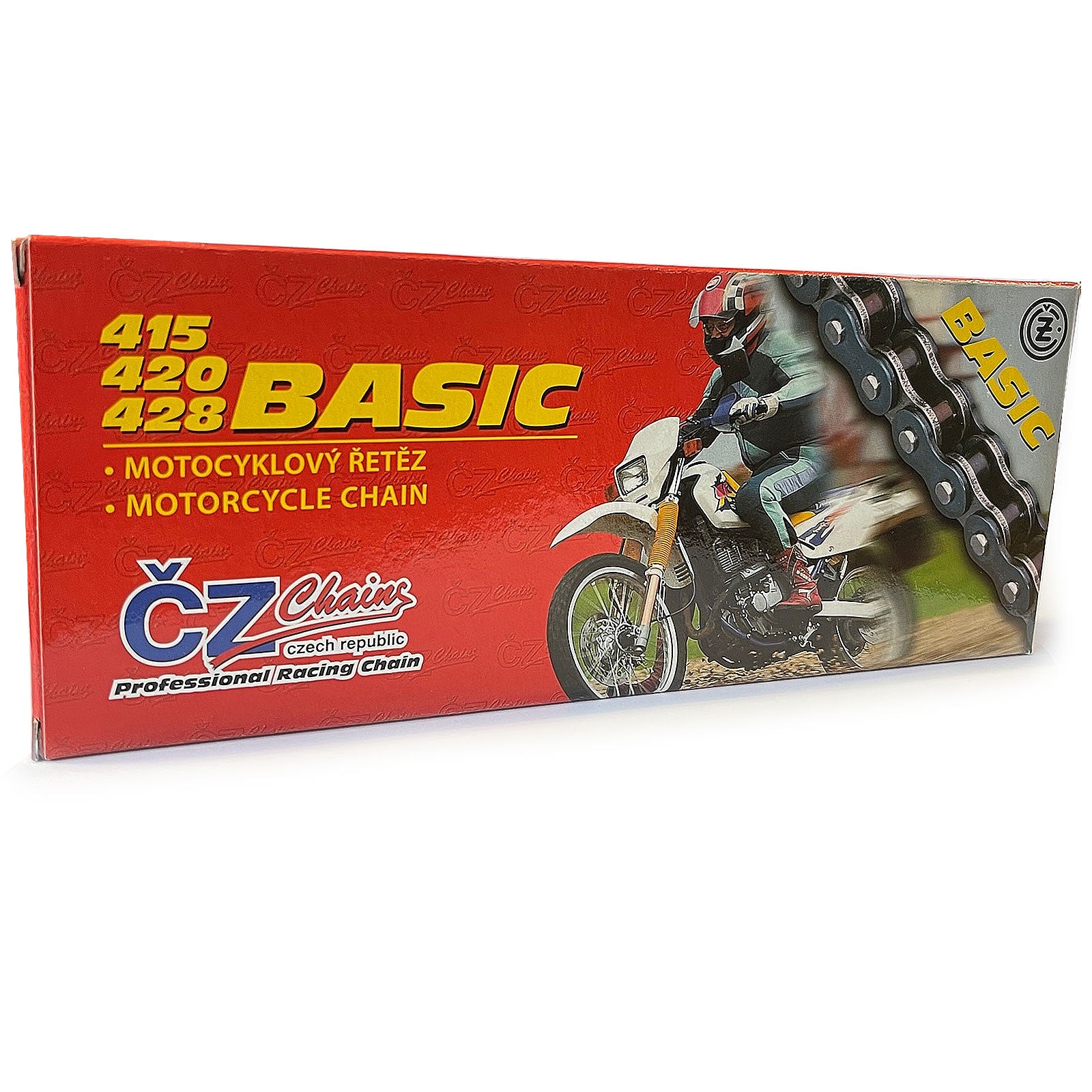

428Sx134 CZ Standard Chain

The most commonly used chain type for the motorcycles of any generation. The technical parameters permit use of the chain on a wide range of motorcycle types with the engine performance under about 20kW.

• Pitch (mm) - 12.7
• Inner width (mm) - 7.75
• Roller diameter (mm) - 8.51
• Pin length (mm) - 16.4
• Plate thickness inner/outer (mm) 1.6/1.4
• Middle static strenght (N) - 19200
• Weight of 100 links (kg) = 0.89
• Connecting link - Clip
