RFX

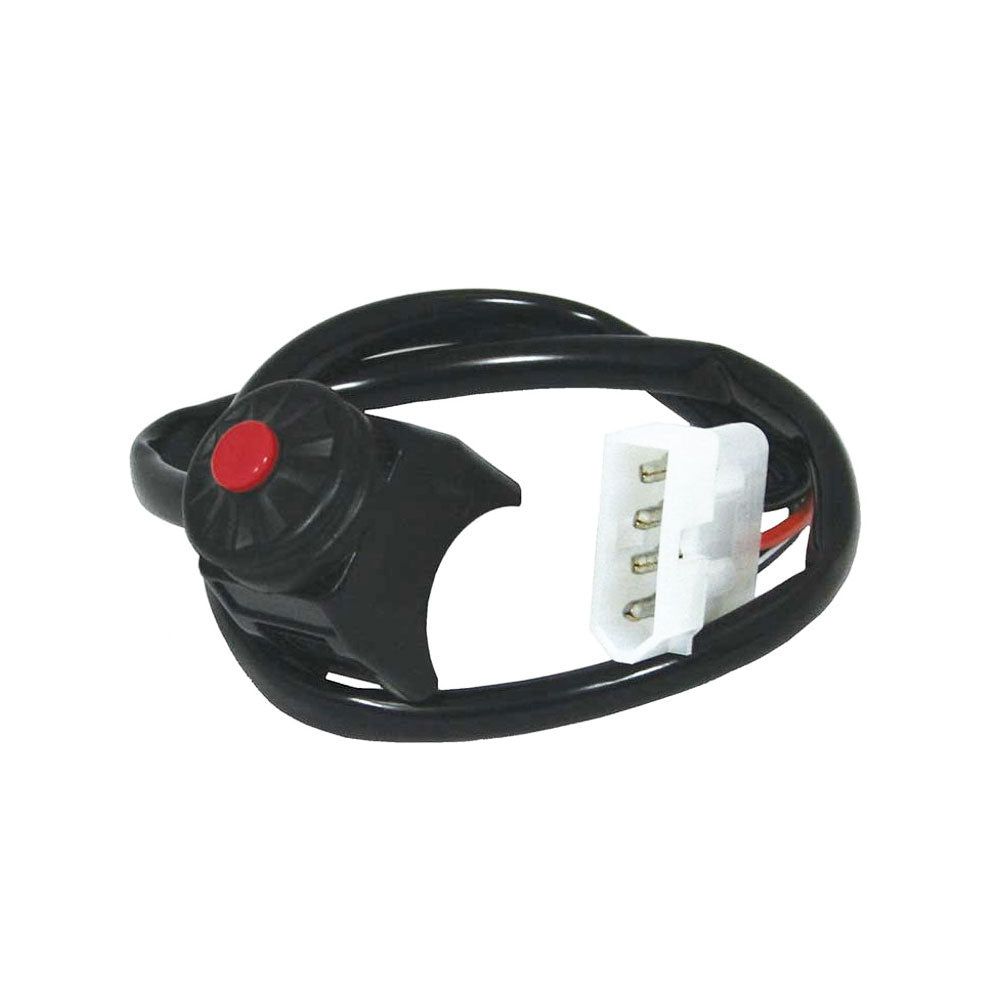

Race Start Button (OEM Replica) KTM All Models Elec Start Models 250-530
04-21
RFX Race Series Start buttons
are an exact OEM replacement part. Complete with the same couplings,
fasteners, connectors and exact cable lengths as the genuine part.
Available for a wide variety
of bikes.
-
OEM replacement
-
Accepts all original
connectors
-
OEM cable length
OEM
Replica
Fitting
Instructions:
-
Start by removing the front
number plate.
-
Carefully snip any cable
ties holding the start and stop switch cables to the bars then
un-screw the clamps and let these hang down.
-
Locate the connector for
the switch on the bike, these are often close by to the headstock on
the chassis but sometimes can be under the tank.
-
Unclip the connector and
remove the switch taking a note of the routing for the wiring.
-
Clean the connector using
contact cleaner such as Maxima Electrical Contact cleaner.
-
Loosely attach the new
switch on to the handlebars in the desired position.
-
Route the wires as per the
old switch and clip the connector together.
-
Check all free pay in the
wires by turning the bars to full extension and making sure the wires
don’t pull tight, adjust if necessary.
-
Re-fit cable ties to the
wires if possible positioning the cables to the back of the bars to
prevent damage from roost.
-
Re-fit your number plate.
