The discs are low-wear and have an up to 30% longer service life
compared to some comparable spare parts.
All variants: Allround, RAC and EC-offroad discs, consist of extremely
dimensionally stable and hardened steel.
The precise surface grinding (thickness deviation of 2 / 100mm) avoids
vibrations and improves the adaptation of the coverings.
An even temperature increase and decrease enables a constant pressure
point.
A new special alloy prevents excessive corrosion.
Laser technology enables lightweight construction with fine contours.
Each brake disc can be driven individually with brake pads from the
TRW-Lucas range.

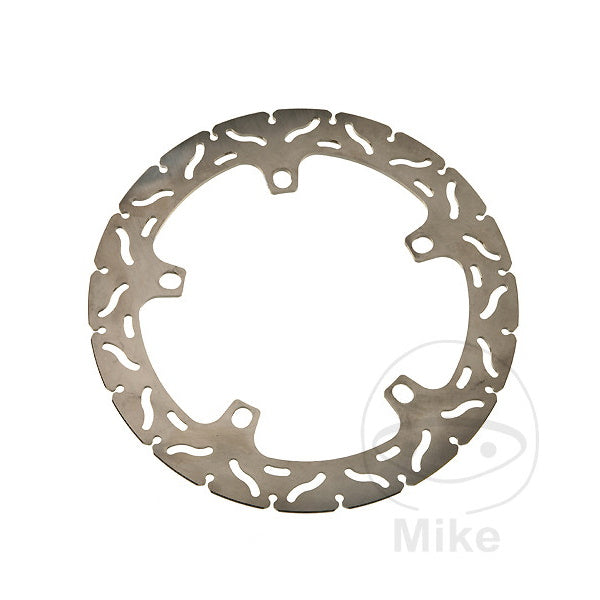

TRW-Lucas floating brake disc RAC
-
Notched outer contour with slotted braking edge
-
In rigid and floating variants
-
Coordinated design from front to rear axle
Technical Data:
-
Outer Diameter: 320 mm
-
Inner Diameter: 181 mm
-
PCD: 202.5 mm
-
Number of mounting bolts: 5
-
Bolt hole diameter: 16.5 mm
-
Thickness: 5 mm
-
Chain Type: Fixed
