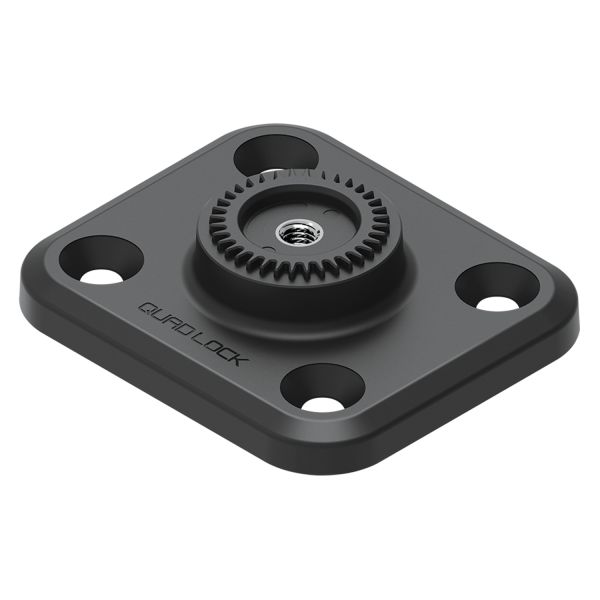

Securely fix your mount to flat surfaces using one of Quad Locks's
Rectangle Flat Hole Bases.
Choose between a 2 hole or a 4 hole base. Both bases can be fixed to flat
surfaces vertically, diagonally or horizontally. Each base uses the
universal AMPs hole spacing standard and the holes will accept 10G or M5
countersunk fasteners.
If using the 4 hole base, we recommend using all 4 hole screws for the
strongest connection. A 10mm Spacers and x2 screws are supplied for
connecting the spacer to a Quad Lock 360 HEAD or ARM.
Please Note: Screws are not provided for mounting the base to your
required surface. Both Rectangle Bases are built with tough, nylon and
use the universal AMPs hole spacing standard. The holes will accept 10G
or M5 countersunk fasteners. 4 HOLE BASE : 58mm (2.3") long x 50mm (2")
wide x 14mm (0.55") high. AMPS Hole Pitch: 38mm (1.5") x 30mm (1.2").
Included in the box : 1x Flat Rectangle 4 Hole Base, 1x 10mm Spacer
