The CANsmart's four dedicated circuits are pre-programmed to connect to
and independently control two sets of auxiliary lights, an auxiliary
horn, and an auxiliary brake light.
Each accessory circuit is electronically fused and ready to use right
out of the box.
Free software (for Mac or PC) allows you to customize these circuits,
but the default settings will be right for the vast majority of
installations.
It also features a "flash to pass" and "strobe when horn active" setting
that will strobe the auxiliary lights when you pulse your high beam
switch or sound your horn.
The feature-rich brake light circuit will transform a simple two-wire
brake light into a smart brake light complete with running light,
multiple flash pattern, and deceleration activated the braking
functionality.
The horn circuit enables the addition of an auxiliary horn without
having to add a relay and dedicated horn wiring harness.
Want more flexibility? We thought you might. You can set any of the four
circuits to Simple Circuit Mode, which will disable all custom circuit
settings to provide a clean switched 12V circuit to power an accessory
of your choice.
The electronic fuse is the only active setting so you can properly fuse
your accessory.
Features:
-
True Plug & Play installation.
-
Offers custom control of your electrical accessories.
-
4 dedicated circuits pre-programmed to control two sets of auxiliary
lights, an auxiliary horn, & an auxiliary brake light.
-
Each circuit is electronically fused and preconfigured to use right
out of the box.
-
Features dozens of customizable settings that can be controlled with
CANsmart Accessory Manager Software.
-
Flash to pass & strobe when horn active can strobe your auxiliary
lights when you pulse the high beam or sound your horn.
-
Compatible with the DENALI B6 Auxiliary Brake Light for integrated
running light, multiple flash pattern, deceleration & activated
braking functionality.
-
Permits use of auxiliary horn like the DENALI SoundBomb without having
to add a relay or dedicated horn wiring harness.
What's in the box:
-

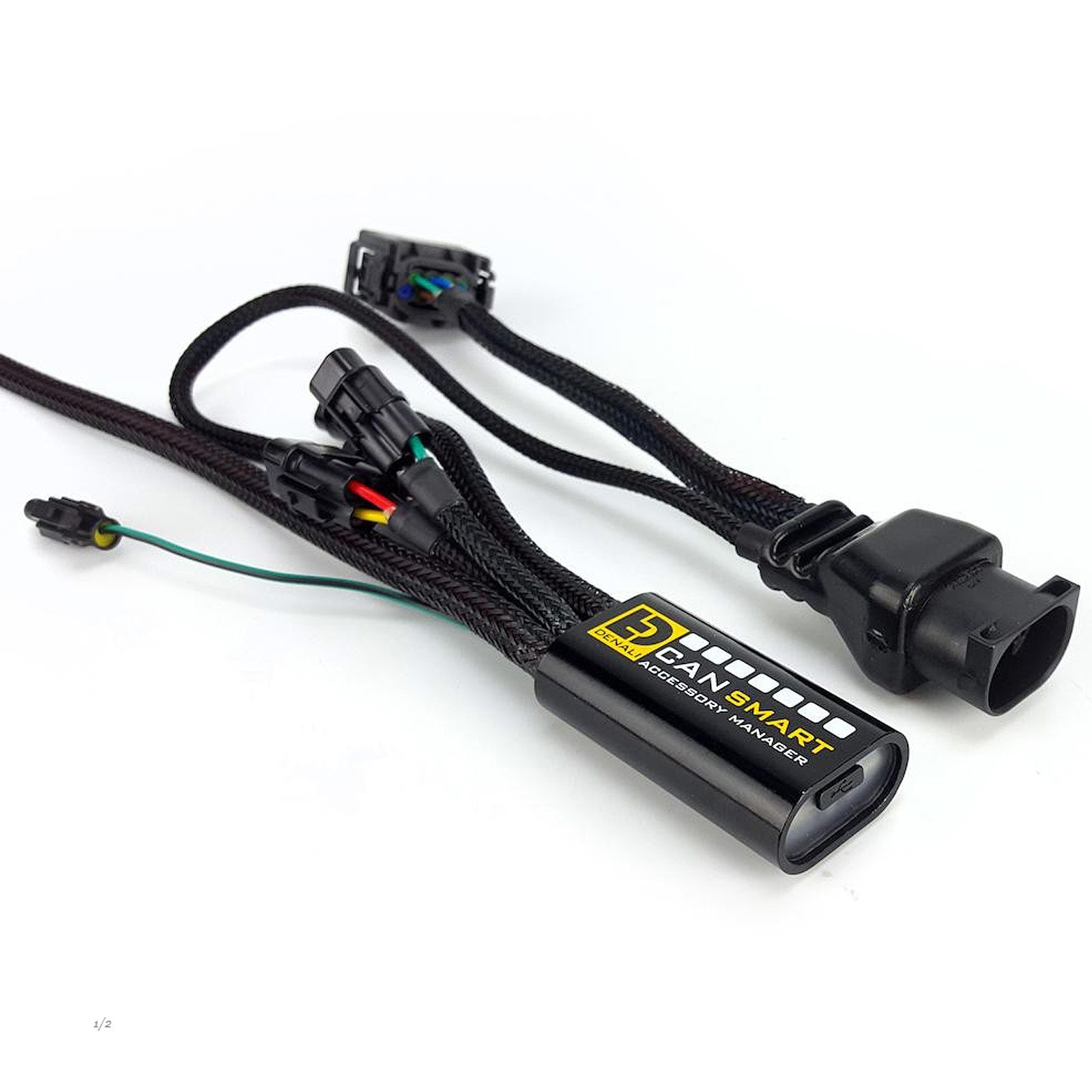

CANsmart Controller.
-
(2) 4ft light extension cables.
-
5ft SoundBomb horn extension cable.
-
Brake light pigtail.
-
Zip-ties.
-
Adhesive hook-and-loop fastener.
-
Micro USB programming cable.
