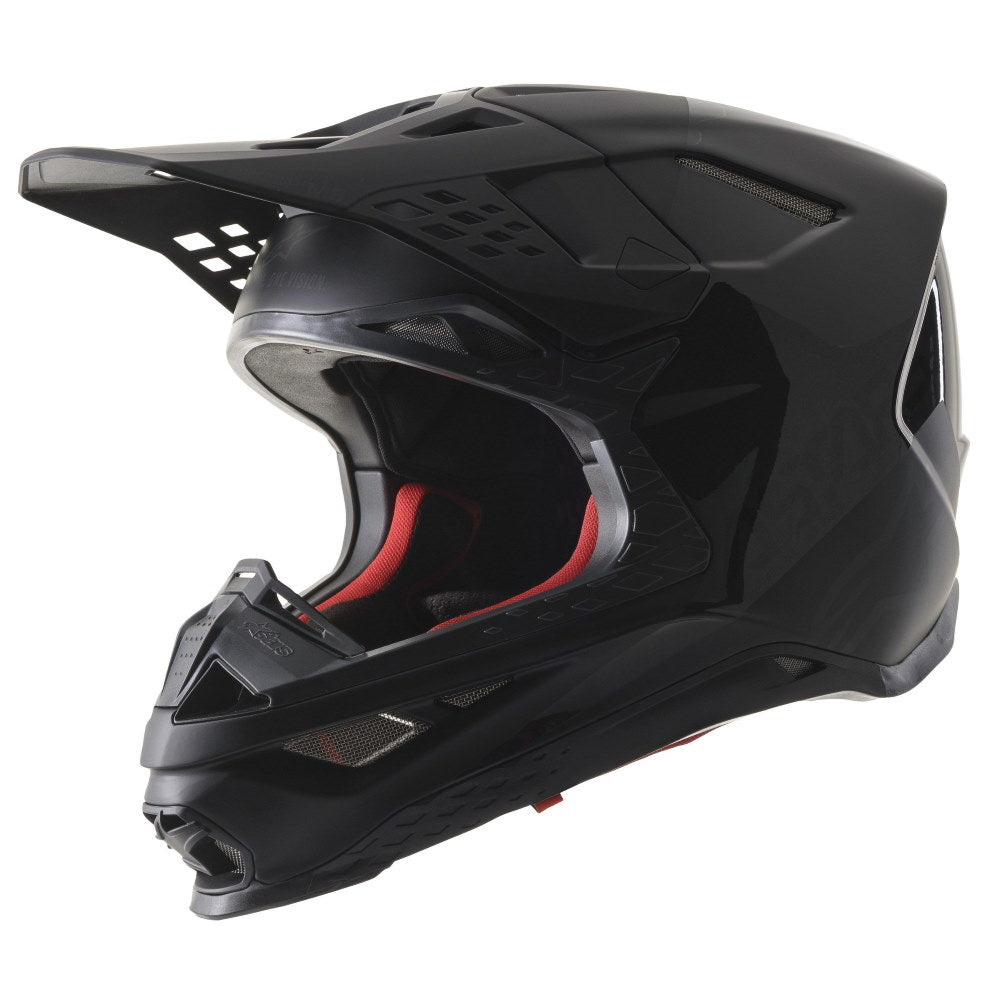

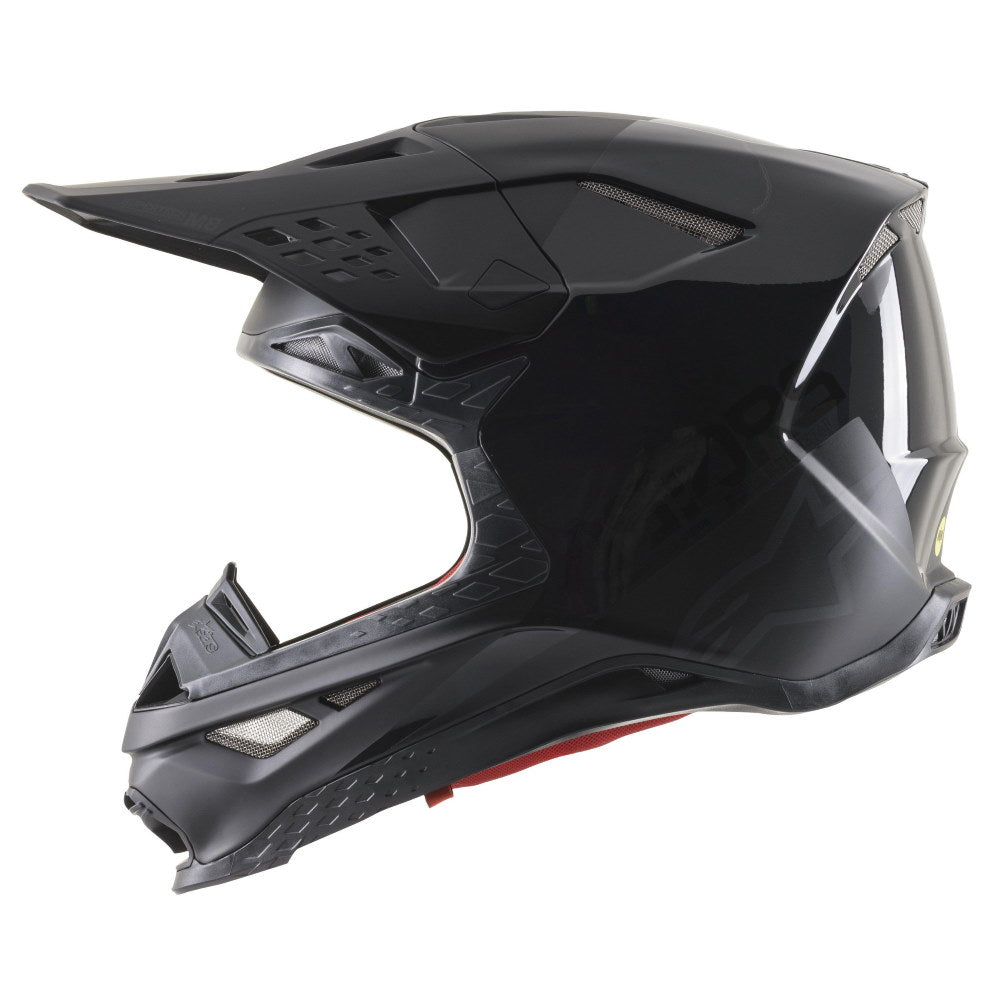

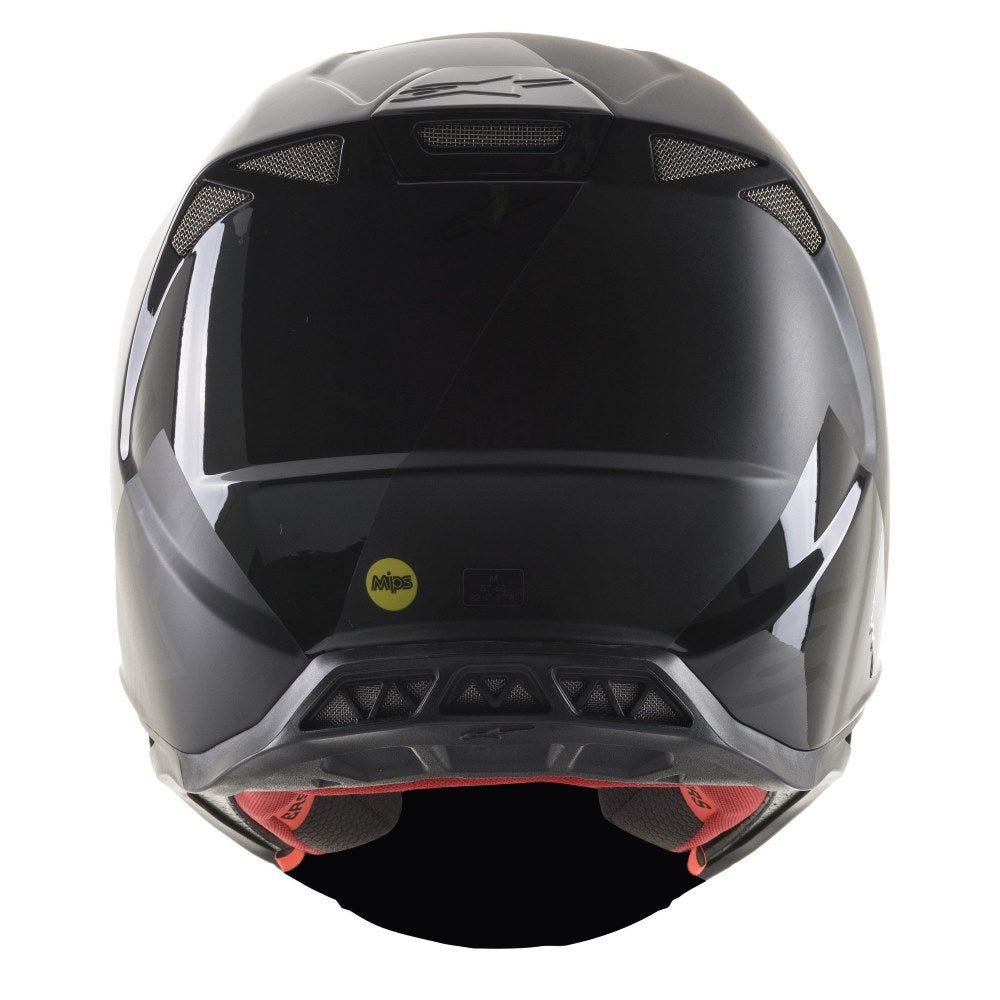

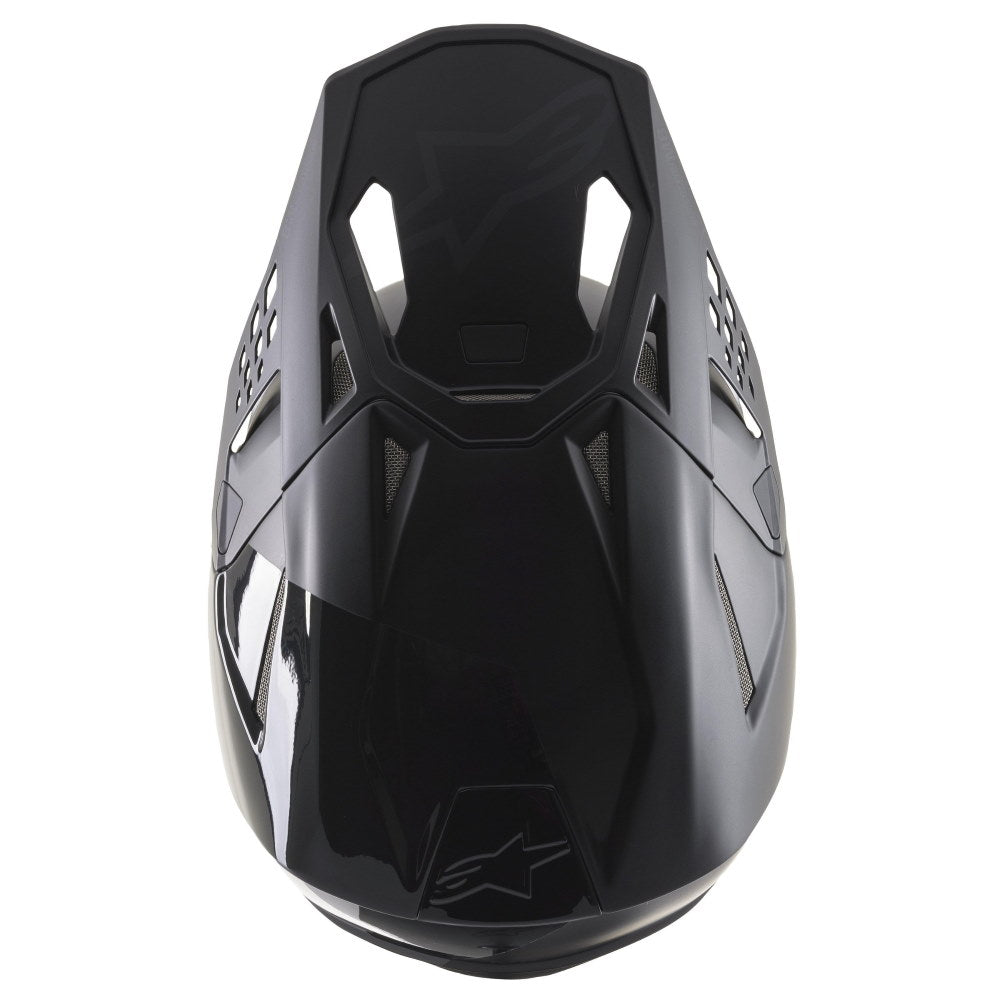

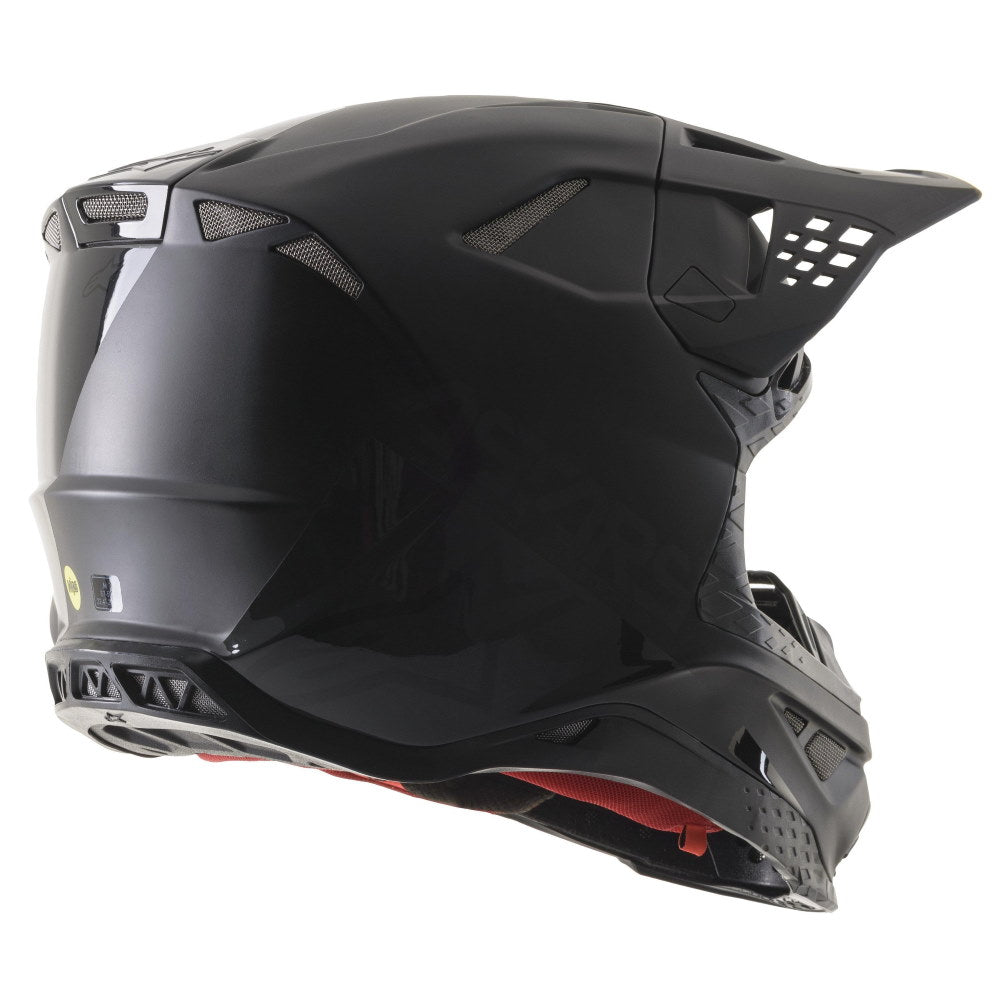

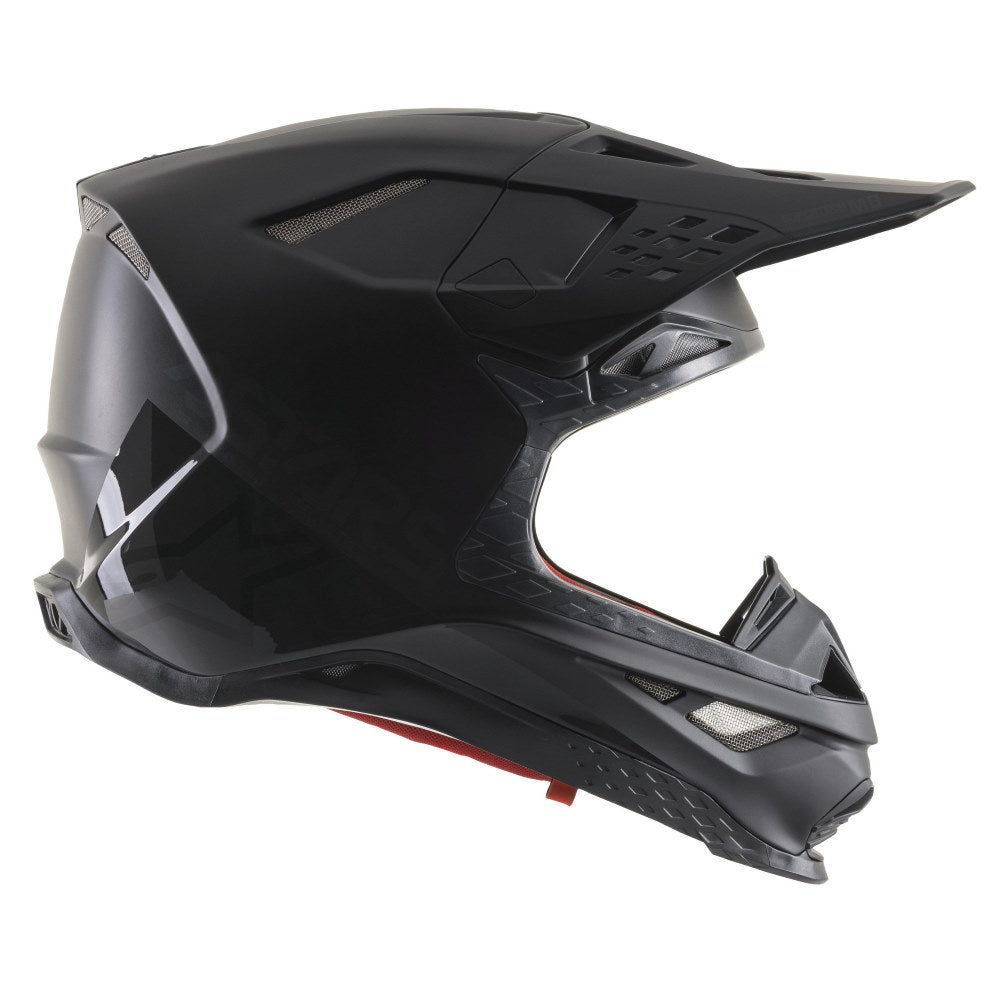

Alpinestars Supertech M8 Echo Black Anthracite Motocross Helmet

At the outset of the MX helmet project, Alpinestars product philosophy was applied and a set of specific objectives set: Create the most advanced, protective and performance enhancing helmet possible. Primary objective: protection – to create the most high performance protection possible. Secondary objective: to give excellent ventilation, comfort and reduced weight.

Alpinestars approach to the creation of the advanced technology in the Supertech M8 draws on its depth of experience from over half a decade of world class innovation across the spectrum of motorsports and especially, its deep rooted commitment to motocross. As with all other categories of technology that Alpinestars has mastered, bringing a new, highly complex, product to fruition requires specialist experience and know-how and a project plan led by the best brains in protection development.

Hence Alpinestars Helmet Development Department was created and given the brief to research and develop the most protective and most comfortable possible motocross helmet. The goal was to allow riders to push the limits of performance, benefiting from confidence inspiring safety technology, reduced weight distribution to minimise muscular effort in the neck, shoulders and back and improved physiological and cognitive performance with a supremely well fitting and well ventilated construction, optimizing comfort while riding.

The design is coherent to Alpinestars philosophy and shares distinctive themes with other products in the portfolio; a smooth, attractive, profile which is streamlined and free of any external channels and features that might act as a load point in an impact, or compromise the overall integrity of the construction. The surface curvature promotes reduced friction on impact, allowing deflection and the most efficient transfer of energy to protect the rider’s head from direct force to the skull and referred to the neck and spinal column. The aperture is designed to accommodate a wide variety of goggles and the air vents in the shell are located to maximize ventilation efficiency.

The S-M8 shell has been profiled with performance as a priority and with a design style that identifies the profile of the helmet and its sculpted surface as uniquely ‘Alpinestars’.

Shell construction utilizes a highly advanced molding technology with a multi-composite combination: uni-directional carbon composite with aramid layer that gives significant radial strength around the shell, preventing compression but allowing controlled deflection for reducing transmitted impact energy, and providing critical penetration protection.

• This combination of layers is given even greater performance with an epoxy resin bonding that offers the best possible strength and energy management; limited outer shell deflection means the energy spreads wider and is better absorbed by the EPS liner.
• The result of the unique shell lay-up process employed in the S-M8 construction results in extremely effective impact protection. With a fully equipped helmet testing facility, within Alpinestars Racing Development Center, an exhaustive impact research program has resulted in the Supertech M8 returning linear and oblique impact performance which far improves upon current helmet regulation standard limits. For direct, linear, impact by an average magnitude of 41% and for rotational acceleration, oblique, impact performance by an average of 48%.
• The Supertech M8 liner construction combines with the shell to offer highly efficient impact energy management.
• S-M8 in four anatomical shell sizes. The Supertech M8 shell construction is optimized to offer best fit across the range of four size options. Shell sizes are manufactured in small, medium, large and extra-large to ensure that riders have the correct fit which not only improves comfort but, most importantly, the effectiveness of the helmet in an impact.
• The Supertech M8 liner construction combines with the shell to offer highly efficient impact energy management.
• Formed with a multi-density EPS polymer, the energy absorbing layer gives an inner helmet profile which soaks up impact forces dissipated over the outer shell at the point of an impact and provides a shape offering a close and comfortable fit.
• The energy absorption performance of the S-M8 is substantially improved by a four section construction that allows for specific densities of polymer to be prepared for different zones around the helmet lining. Not only is energy performance improved but also fit and comfort.
• Patented A-Head fitting height and angle adjustment system.
• The Supertech M8 incorportes a patented system to allow the helmet to be tuned exactly to the riders preference for the height and angle at which the helmet sits on the head. This unique technology allows for an ultra-specific set-up that can be adapted for the type of riding and the rider’s preference.
• With a micro-adjustable pad that is connected to the helmet inner shell, it is possible to raise or lower the helmet fit and also, to tilt the helmet forward, or backwards.
• Unique, patented, visor release system is another key attribute incorporated into the design of the Supertech M8.
• Visor release is a key part of overall protection performance in the helmet and a major influence on the distinctive, flush, design of the outer shell profile.
• Alpinestars has developed a unique visor release system which, while ensuring the mounting is held securely in place for riding over the most extreme terrain and any track conditions, provides exactly the right level of resistance to ensure the visor detatches from the helmet shell if it is subjected to a significant impact – no matter what the angle.
• The S-M8 visor release mechanism is conceived to avoid the inherent weaknesses in other types of anchoring systems. Maintaining shell integrity is vital for safety and with the possibility of multi-directional forces impacting on the visor, separation at the critical point of loading reduces potentially damaging leverage and rotational accelerations that refer injury to the rider’s neck and spine.
• Ventilation is a key feature of the Supertech M8.
• Heat mapping tests have resulted in specifically designed ducting which produces a positive flow into the helmet over and around the rider’s head, improving comfort while riding and reducing the on-set of heat stress in extreme conditions.
• The visor design of the S-M8 is also an integral part of the ventilation system as it is profiled to direct airflow, acting as a channel to concentrate and smooth the flow into the shell. The Supertech M8 liner design is formed to optimize airflow channeling around the rider’s head before being extracted from the S-M8 through rear exhaust vents to ensure positive pressure is maintained with constant airflow while riding.
• Hydration system compatibility.
• The Supertech M8 helmet lining design includes canals which allow a tube to be incorporated on either side of the shell. This is a feature extensively tested by Alpinestars rally raid and enduro riders enabling convenient fitting and connection to a hydration system.
• Interior lining comfort.
• Removable liner cover is washable and features a cool-max fabric interior and anti-bacterial talent yarn for long-lasting freshness and quick-dry performance between riding sessions.
• Helmet features TPE coating washable surfaces to improve maintenance and increase durability.
• Additional cheek pad set offering increased thickness of +5mm, for tighter fit adjustment – available separately.
• Collarbone protection is an important design feature of the Supertech M8 helmet shell base profile.
• The base of the S-M8 has been sculpted to give a relief section, where the bottom profile is raised to clear the collarbone (Clavicle). Also, incorporated into the area of the base pad, where it sits over the rider’s collarbone, is an energy absorbtion pad; a more flexible compound rubber section which allows deflection when it contacts the Clavicle.
• The Supertech M8 chin-bar is formed with polypropylene which, by allowing for a degree of lateral deflection, further improves impact protection for the collarbones.
• Post-crash protection mechanisms are also a key feature of the Supertech M8 design, allowing rapid and safe intervention if the rider has suffered a major impact.
• Multi-Directional Impact Protection System: MIPS.
• MIPS is incorporated into the Supertech M8 to reduce rotational motion energies that impact the helmet causing damaging gyration force to be transmitted to the brain.
• A low friction ‘slip’ layer is incorporated into the Supertech M8 helmet, between the comfort padding layer and the multi-density polymer energy absorption shell. When energy is impacted upon the helmet, causing a rotation force, the MIPS layer allows for movement of the inner absorbtion layer to damp and re-direct the energy before causing significant acceleration stress to the brain. This mitigates the causes of brain injuries, such as concussion.
• Emergency Release System (ERS).
• The side cheek padding of the S-M8 can be extracted efficiently and safely, while the helmet is still on the rider’s head, to allow ease of removal by trackside support and medical staff.
• The Supertech M8 is also designed to allow a helmet ‘Eject’ inflation system to be fitted into the inside crown of the shell.
• Along with the ERS padding removal, ‘Eject’ allows for emergency removal of the helmet, without putting load on the rider’s spine.
• Chin-strap: Wider than certification requirement: 26 mm for comfort and produced with a woven poly yarn to give a soft ‘hand’ feel that connects securely with a double D-ring.
• Weight: Reduced by design while allowing the Supertech M8 protection to be class-leading.
• Weight is both a factor in riding performance and safety in a helmet and to ensure the S-M8 offers the ultimate in weight saving performance enhancement, the material selection, preparation and construction of the helmet has been rigorously analysed for weight to strength and energy absorbtion properties and a strict analysis of all the components used in the Supertech M8 finishing.
• Weight of S-M8 is 1300g for size Medium (ECE) - 1360g for size Medium (DOT)
• The Supertech M8 Certifications.
• The Supertech M8 helmet versions conform to both DOT certification and ECE homologation for use worldwide.
• The DOT 218 standard prescribes specific impact penetration protection over the crown of the helmet area and hence, for the US and Canada markets, the Supertech M8 will feature technology that substantially exceedes the minimum safety requirements.
