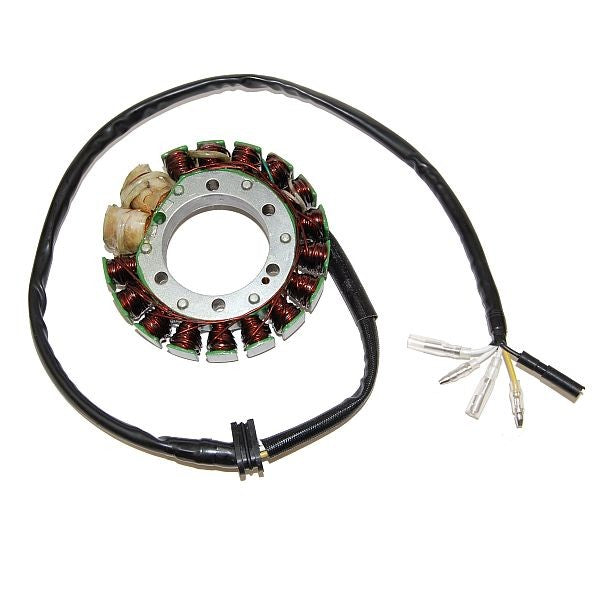

ESG413 is a HIGH output stator for the Honda XR600R models offering 100W plus 50W of lighting or charging output which can drive a dual sport kit and a high output headlight.ElectroSport designed the ESG413 stator to have two sets of output windings: the 50W output is floated from ground and has two output leads, and the 100W output is grounded on one side. Both windings also have different winding configurations to ensure optimum output.Our ESG413 is built on a modern stator core made of highly magnetically conductive material. We install the highest grade copper wire using our state-of-the-art computer controlled winding machines and we connect high quality lead wires that are both abrasion and heat resistant. This stator comes with high grade rubber seals and connectors installed and as such is a plug in replacement.Even if you don't need the extra lighting or charging output you can still use ESG413 as a straight replacement for the OEM stator and it is a very cost effective solution that way.Like all stators manufactured by ElectroSport ESG413 also comes with a full one year warranty.
HONDA Street Bikes
XR350R (83-85)
XR500R (81-84)
XR600R (85-00)
HONDA Dirt Bikes
XR350R (83-85)
XR500R (83-84)
XL600R (83-87)
XR600R (85-00)
