Battery tester 12V with universal mounting on the handlebar or pipe rods
for motorcycles, scooters, mopeds, quad bikes, convertibles, seasonal
vehicles Ideal for any vehicle that is not regularly in operation.
The battery status can be interrogated at any time without switching on
the vehicle electrical system.
Function: A battery checker for permanent installation in the vehicle.
Since it works only at push-button pressure, it does not need any
current or loads the vehicle battery.
The microprocessor signals the following
LED states: - continuously green (from 12.7 V): well charged - green
flashing (12.5-12.7V): still sufficiently charged - red / green
(12.4-12.5 V): slowly recharge or drive - red flashing (12.2-12.4 V):
urgently load, possibly starting problems - constantly red (up to
12,2V): absolutely charge, battery starts to sulfate.
The tester is intended for universal mounting on the pipe rod or on the
handlebar with enclosed cable ties. The cable ties are optically
integrated into ducts of the cast housing.
Waterproof overmoulded housing .
Tech.
Data: Test module Dimensions: L x W x H 360/16/29 mm 1.2m cable (red /
black), 0.75mm, with 6mm cable shoe
Housing: material hotmelt, water tightness IP46 Display accuracy: +/-
1-2%
Dimensions: 1,2m connection cable / 1qmm
Quality "Made in Germany"

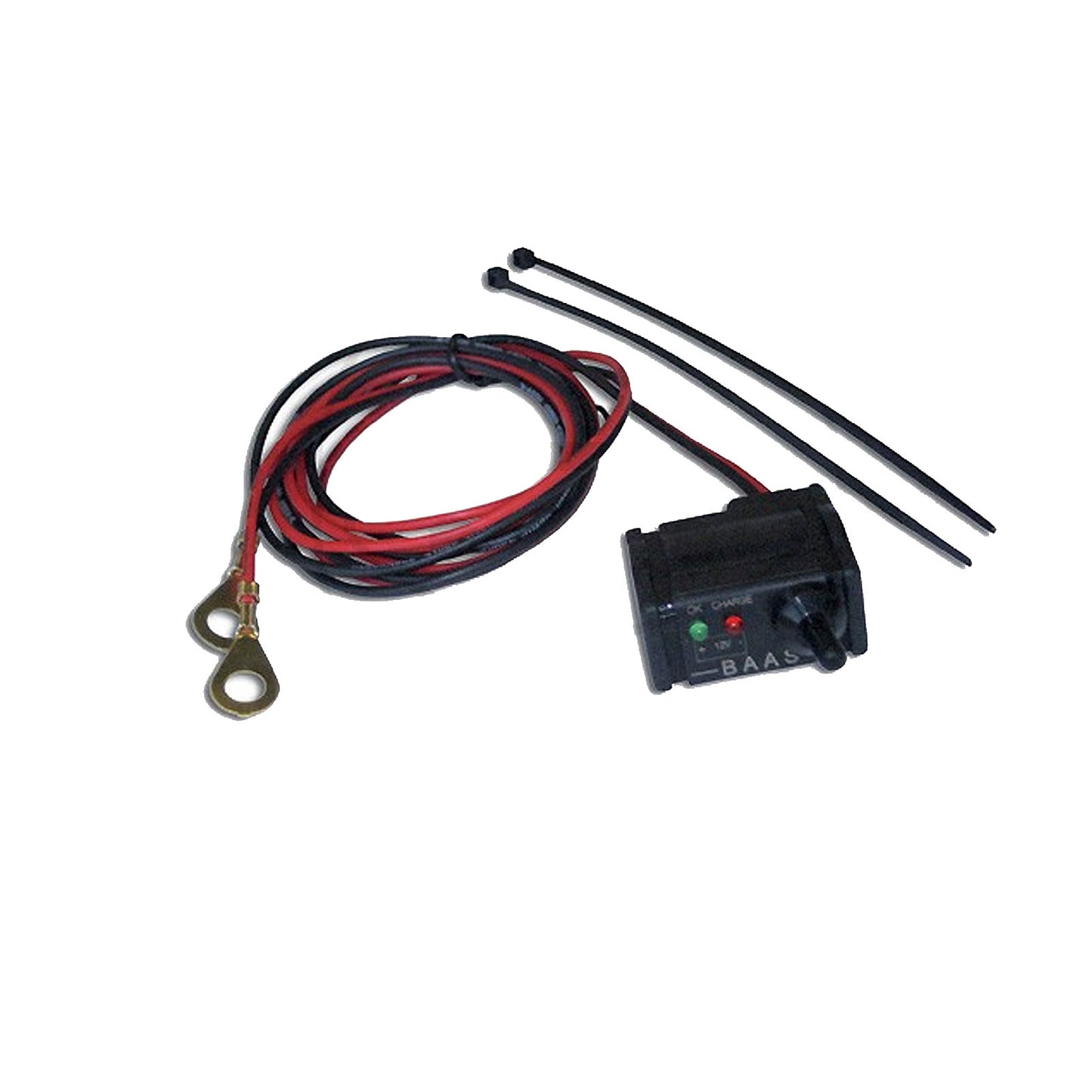

Scope of delivery: device, 2 cable ties in the PE bag (120 x 170mm)
