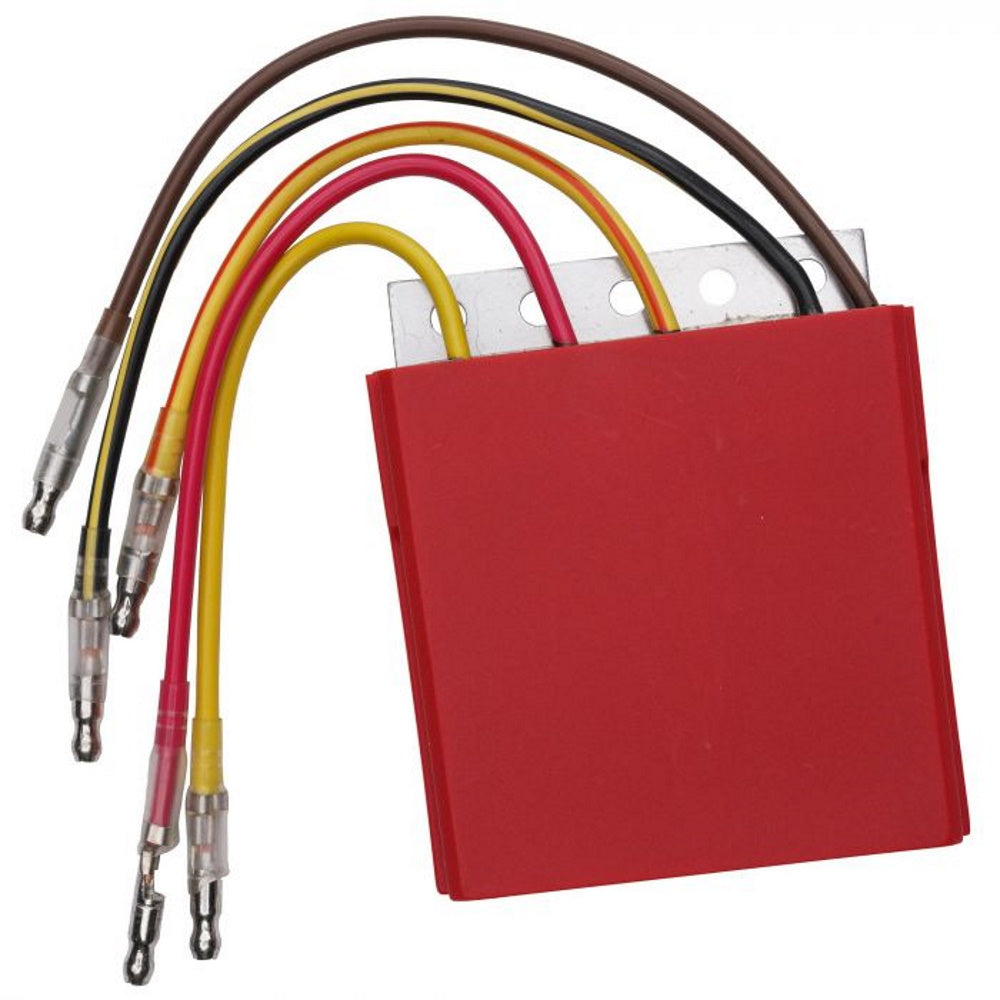

Polaris 325 Magnum 2x4 4x4 00-02 x4 MTX Regulator Rectifier

Polaris 325 Magnum 2x4, 4x4 00-02 x4 MTX Regulator Rectifier

MTX Performance Parts come straight from their extensive experience on the race track and that same DNA and passion flow into their range of aftermarket performance and electronic components.

A motorcycle regulator rectifier is part of the battery charging system, and as the name implies regulates the voltage across a motorcycle to save working ranges.

Typically a rectifier is fed AC power generated from the stator coils of the generator (alternator) and converts it to DC power whilst, at the same time, limiting the voltage to a maximum of about 14.5 volts.

Signs that your regulator needs replacing.

• Depending on the location of the regulator rectifier, the part can easily overheat.
• Other causes for a dead regulator rectifier center on the battery.
• Ground connections are important for good voltage, and if there is a faulty voltage, the regulator rectifier can run hot.
• Bad grounding, corroded battery connection and poor or loose battery connections will cause faulty voltage too.

There are generally two ways for the regulator rectifier to fail.

• The first deals with diode burnout, resulting in battery drain.
• It is easy to assume that the issue is a bad battery because of symptoms such as dimming headlights and poor starts.
• Checking the voltage with a voltmeter versus relying on symptoms alone will prove highly beneficial.
• If the voltage drops below 13 volts, the motorcycle will begin to drain the battery and eventually the engine will stop.
• Check for bad connections and corrosion; these can also cause voltage issues.
• The other failure type is shunt regulator burnout, where the regulator rectifier fails to control the voltage, resulting in battery overcharge.
• Again, a voltmeter will be useful for diagnosis.
• Though generally, readings above 17 volts mean the regulator rectifier is not converting the excess power correctly and all of that excess voltage may cause the headlights to become extremely bright and then blow.

MTX's range of OE replacement rectifiers are designed to directly replace faulty or broken OE componentry, with all the same connectors as your OE components, they are simply 'plug-and-play' replacements.

Direct Replacement Plug and Play with OE connectors included.

Also Fits Polaris Models:

• 325 Magnum 4x4 Freedom 2002
• 325 Magnum 4x4 Mose 2001
• 325 Sportsman 1999-2000
• 325 Trail Boss 2000-2001
• 325 Xpedition 2000-2002
• 335 Sportsman 1999-2000
• 400 Scrambler L 1997
• 400 Sportsman 2001-2002
• 400 Xplorer 1998-2002
• 400 Xplorer L 1996-1997
• 400 Xpress L 1996
• 425 Magnum 2x4 1998
• 425 Magnum 4x4 1996-1998
• 425 Xpedition 2000-2002
• 500 Sportsman 4x4 1996-1997
• 500 Xplorer 1997
